Novastar H2 H5 H9 H15 Video Splicing Processor For Fine Pitch LED Display
Introduction
The H2 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The H2 can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards. Thanks to excellent features and stable performance, the H2 can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.
Based on the powerful hardware FPGA system architecture, with a modular and plug-in design, the H2 features a stable and highly efficient pure hardware architecture, and provides a variety of connector modules for flexible and personalized configuration, allowing for easy maintenance and low failure rate. The H2 provides the industry-standard input connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs. The H2 also provides two kinds of LED 4K sending cards, allowing for the backup between the OPT ports and Ethernet ports as well as ultra-long distance transmission. Moreover, the H2 supports multi-screen and multi-layer management, input and output EDID management and monitoring, input source renaming, BKG and OSD settings and more, bringing you a rich image construction experience.
In addition, the H2 adopts the B/S architecture and supports cross-platform, cross-system access and control without the need to install an application program. On a Windows, Mac, iOS, Android or Linux platform, online collaboration of multiple users is supported and the Web page response speed is very fast, which greatly improves on-site setup efficiency. What’s more, the H2 supports online firmware update, allowing for easy hardware update on a PC.
Certifications
CE, UKCA, FCC, IC, CB, NOM, RCM, KC, CMIM
If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks caused or NovaStar has the right to claim compensation.
Features
Modular and plug-in design, free combination at your will
⬤Two kinds of LED 4K sending cards
− H_20xRJ45 sending card loads up to 13,000,000 pixels.
− H_16xRJ45+2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports.
⬤Multi-capacity configuration on a single card slot
− 4x 2K×1K@60Hz
− 2x 4K×1K@60Hz
− 1x 4K×2K@60Hz
⬤Simple screen configuration using a single card and connector
⬤Online status monitoring of all input and output cards
⬤Hot-swappable input and output cards
⬤H_2xRJ45 IP input card supports up to 100 IP camera inputs and input mosaic.
⬤Auto decryption of HDCP-encrypted sources
⬤Decimal frame rates supported
⬤HDR10 and HLG processing
Multi-screen management for centralized control
⬤Each screen can have its own output resolution.
⬤Output mosaic
Adopts the frame synchronization technology, which ensures all the output connectors output the image synchronously, and the image is complete and played smoothly, without any stuck, frame loss, tearing or piecing.
⬤Irregular screen configuration
Supports irregular rectangle mosaic without any limitations.
⬤Input source grouping management
⬤Eye saver mode
Display the image in a warmer but less bright way to relieve eye strain.
⬤LCD bezel compensation
Diverse display possibilities for flexible configuration
⬤Multi-layer display
A single card supports 16x 2K layers, 8x DL layers or 4x 4K layers.
All layers support cross-connector output and the layer quantity is not reduced for cross- connector output.
⬤High-definition scrolling text
Customize the scrolling text content, such as slogans or notification messages, and set the text style, scrolling direction and speed.
⬤Up to 2,000 presets
Fade effect and seamless switching supported, less than 60ms preset switching duration
⬤Scheduled playback of preset playlist
Set whether to add the presets to playlist, which is ideal for monitoring, exhibitions, presentations, and other applications.
⬤OSD settings on a single screen and adjustable OSD transparency
⬤BKG settings
BKG images do not occupy the layer resources.
The max. width and height of a BKG image is up to 15K and 8K respectively.
⬤Channel logo management
Set a text or image logo for identifying the input source.
⬤Input source cropping and renaming after cropping
Crop any input source image and form a new input source after cropping.
⬤HDR and 10-bit video processing, allowing for a more exquisite and clear image
⬤Color adjustment
Output connector color and screen color adjustable, including the brightness, contrast, saturation, hue and Gamma
⬤XR scenario control
⬤3D function
Work with NovaStar’s 3D emitter – EMT200 to enjoy the 3D visual effect.
⬤Low latency
Reduce the latency from the input source to the receiving card to as low as 1 frame.
Web-page control, easy, friendly and convenient
⬤Web control
Real-time response and 1000M/100M self- adaptive network control, allowing for multi-user collaboration
⬤Monitoring of inputs and outputs on Web page
⬤Firmware update on Web page
⬤Ark Visualized Management and Control Platform App control on pad device
Status monitoring for better stability and reliability
⬤Self-test for fault detection
⬤Auto monitoring and alarms
Supports hardware monitoring, such as fan rotation speed, module temperature and voltage, running status, and sends fault alarms if necessary.
⬤Backup design
− Backup between devices
− Backup between LED 4K sending cards
Appearance
Front Panel
*The picture shown is for illustration purpose only. Actual product may vary due to product enhancement.
This product can only be placed horizontally. Do not mount vertically or upside-down.
The product can be mounted in a standard 19-inch rack capable of withstanding at least four times the total weight of the mounted equipment. Four M5 screws should be used to fix the product.
| Name | Description |
| LCD screen | Displays the device status and monitoring information. |
Rear Panel
The picture shown is for illustration purpose only. Actual product may vary due to product enhancement.
The silkscreen marking "I-x" or "I/x" indicates the slot is dedicated for the input card. "I" stands for input and "x" stands for the slot number. For example, "I-1" indicates this slot is the 1st input slot and for installing an input card only.
The silkscreen marking "O-x" or "O/x" indicates the slot is dedicated for the output card. "O" stands for output and "x" stands for the slot number. For example, "O-10" indicates this slot is the 10th output slot and for installing an output card only.
The silkscreen marking "" indicates the slot can accept an input card or preview card.
Input Card
| H_4xDVI input card |  Support for single link and dual link input modes, and 10-bit input source HDCP 1.4 compliantDoes not support interlaced signal input.l Single link mode:− Four DVI connectors are all used for input. |
| − Each connector supports the maximum resolution of 2048×1152@60Hz and the minimum resolution of 800×600@60Hz.− Custom resolutions:Max. width: 2560 pixels (2560×972@60Hz) Max. height: 2560 pixels (884×2560@60Hz)l Dual link mode:− Connectors 2 and 4 are used for input, and connectors 1 and 3 are unavailable.− Each connector supports the maximum resolution of 3840×1080@60Hz and the minimum resolution of 800×600@60Hz.− Custom resolutions:Max. width: 3840 pixels (3840×1124@60Hz) Max. height: 4095 pixels (1014×4095@60Hz)Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. | |
| H_4xHDMI input card |  Support for 10-bit input sourceDoes not support interlaced signal input. For HDMI 1.3 inputs:l Four connectors are all used for input.l Each connector supports the maximum resolution of 2048 × 1152@60Hz, and the minimum resolution of 800×600@60Hz.l Custom resolutions:Max. width: 2560 pixels (2560×972@60Hz) Max. height: 2560 pixels (884×2560@60Hz)l HDCP 1.4 compliant For HDMI 1.4 inputs:l Two HDMI 1.4 connectors are used for input, but two HDMI 1.3 connectors are unavailable.l Each connector supports the maximum resolution of 3840×1080@60Hz.
l Custom resolutions: Max. width: 3840 pixels (3840×1124@60Hz) Max. height: 4095 pixels (1014×4095@60Hz) l HDCP 1.4 compliant
Status LEDs: l On: The input source is accessed normally. l Off: No input source is accessed or the input source is abnormal. |
| H_1xHDMI2.0+1xDP1.2input card |  Only one connector can be used each time.Set to use which connector on the Web page. The default option is HDMI 2.0 connector.Does not support interlaced signal input. |
| l 1x HDMI 2.0− Backward compatible with HDMI 1.4 and HDMI 1.3− Supports the maximum resolution of 3840×2160@60Hz.− HDCP 2.2 compliant− Custom resolutions:Max. width: 4092 pixels (4092×2261@60Hz) Max. height: 4095 pixels (2188×4095@60Hz)l 1x DP 1.2− Backward compatible with DP 1.1− Supports the maximum resolution of 4096×2160@60Hz or 8192×1080@60Hz.− HDCP 2.2 compliant− Custom resolutions:Max. width: 8192 pixels (8192×1146@60Hz) Max. height: 4095 pixels (2188×4095@60Hz)Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. | |
| H_2xRJ45 IP input card |  2x RJ45 Gigabit Ethernet ports Support for interlaced signal inputl Supported protocols: RTSP, GB28181 and ONVIFl Supported coding formats: H.264 and H.265l Single card decoding capability:− 4x 3840×2160@30fps− 16x 1920×1080@30fpsl DHCP compliant |
| H_4x3G SDI input card |  4x 3G-SDIl Backward compatible with HD-SDI and SD-SDIl Supports ST-424 (3G), ST-292 (HD) and SMPTE 259 SD.l Each connector supports the maximum resolution of 1920×1080@60Hz.l Supports 1080i/576i/480i de-interlacing processing. Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. |
| H_2xCVBS+2xVGAinput card |  2x VGAl Each connector supports the maximum resolution of 1920×1200@60Hz. 2x CVBSl Supports PAL and NTSC. Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. |
| H_4xVGA input card |  4x VGAl Each connector supports the maximum resolution of 1920×1200@60Hz. Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. |
| H_2xDP1.1 input card |  2x DP1.1l Each connector supports the maximum resolution of 3840×1080@60Hz or 3840×2160@30Hz.l Custom resolutions:− Max. width: 3840 pixels (3840×1124@60Hz)− Max. height: 4095 pixels (1014×4095@60Hz)l Supports 8-bit and 10-bit inputs.l Does not support interlaced signal input.l HDCP 1.3 compliant Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. |
| H_1xDP1.2 input card |  1x DP 1.2l Backward compatible with DP 1.1l Each connector supports the maximum resolution of 4096×2160@60Hz or 8192×1080@60Hz.l Custom resolutions:− Max. width: 8192 pixels (8192×1146@60Hz)− Max. height: 4095 pixels (2188×4095@60Hz)l HDCP 2.2 compliant Status LEDs:l On: The input source is accessed normally.l Off: No input source is accessed or the input source is abnormal. |
| H_STD I/O card |  l 2x COMProgrammable RS422/RS485/RS232 ports that are used to control the devices that adopt RS422/RS485/RS232 protocol− COM port pins are shown as below: − Pin wirings are shown as below: l 1x ETHERNET− Control the device that is connected to this card.− 10/100Mbps self-adaptive− TCP/IP protocol and UDP/IP protocol supportedl 3x I/O
− Trigger the execution of the function requirements via programming. − Input and output modes supported − Pins 1, 2 and 3 can be set to either the input or output, and pin G is the common grounding pin for pins 1, 2 and 3. l 3x RELAY OUT − Connect to the relay to control the power on and off of the connected device. − Voltage: 30 VDC, current: 3A at maximum − Six pins are divided into three groups, which can be connected or disconnected via programming. l 3x IR OUT − Programmable infrared control supported − Pins 1, 2 and 3 are used for infrared emission, and pin G is the common grounding pin for pins 1, 2 and 3. |
| H_1x12G SDI input card |  1x 12G-SDI IN− Backward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI− Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 SD.− Each connector supports the maximum resolution of 4096×2160@60Hz.− Supports 1080i/576i/480i de-interlacing processing.− Does not support input resolution and bit depth settings.l 1x 12G-SDI LOOPLoop out the 12G-SDI signal.l Status LEDs:− On: The input or loop output is connected normally. |
| − Off: No input or loop output is connected or the input or loop output is abnormal. | |
| H_1xHDMI2.0 input card | 1x HDMI 2.0l Backward compatible with HDMI 1.4 and HDMI 1.3l Each connector supports the maximum resolution of 3840×2160@60Hz.l HDCP 2.2 compliantl Custom resolutions:− Max. width: 4092 pixels (4092×2261@60Hz)− Max. height: 4095 pixels (2188×4095@60Hz)l Status LEDs:− On: The input source is accessed normally.− Off: No input source is accessed or the input source is abnormal. |
| Output Card | |
| H_16xRJ45+2xfiber sending card |  LED 4K sending card can load up to 10,400,000 pixels (max. width: 10,240 pixels, max. height: 10,240 pixels).This card occupies two slots.l 16x RJ45 Gigabit Ethernet outputs− Bit depth: 8-bitA single Ethernet port loads up to 650,000 pixels.− Bit depth: 10-bitA single Ethernet port loads up to 320,000 pixels.− Backup between Ethernet portsl 2x OPT outputs− Support both SMF and MMF transmission.− OPT 1 copies and outputs the data on Ethernet ports 1–8.− OPT 2 copies and outputs the data on Ethernet ports 9–16.
Note: For the optical module connected to the OPT port, you need to order or purchase separately. |
| H_20xRJ45sending card |  LED 4K sending card can load up to 13,000,000 pixels (max. width: 10,752 pixels, max. height: 10,752 pixels).This card occupies two slots.l 20x RJ45 Gigabit Ethernet outputs− Bit depth: 8-bit |
| A single Ethernet port loads up to 650,000 pixels.− Bit depth: 10-bitA single Ethernet port loads up to 320,000 pixels.l Backup between Ethernet ports | |
| H_2xRJ45+1xHDMI1.3preview card | l 2x RJ45 Gigabit Ethernet outputsConnect to the network for monitoring the inputs and outputs.l 1x HDMI 1.3Connect to a monitor for displaying the monitoring information. |

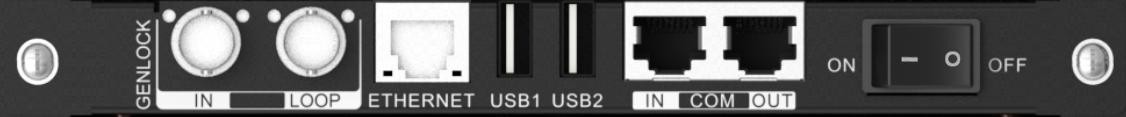

| H_Control Card | |
 |
|
| GENLOCK | Supports bi-level and tri-level.l IN: Accept the Genlock signall LOOP: Loop the Genlock signal. |
| ETHERNET | A Gigabit Ethernet portl Connect to the control PC for communication.l Connect to the router, switch or PC.l For Web control and NovaLCT screen configuration |
| USB 1 & USB 2 | 2x USB 2.0l Update the device program.l Import or export the device configuration parameters.Note:The USB connectors cannot provide power for the connected devices. |
| COM | A serial port that adopts RS232 serial protocol Support for central control systeml IN: Accept the signal from the central control system.l OUT: Loop the signal.Note:The COM port cannot be connected to the network (router or switch) or LED cabinet (receiving card). |
| Power switch | l – / ON: Power on the device.l O / OFF: Power off the device. |
Applications
Dimensions
Tolerance: ±0.3 Unit: mm
Specifications
| Model | H2 | |
| Rack Unit | 2U | |
| Max. Input Cards | 4 | |
| Max. Input Channels | 16 | |
| Max. Output Cards | 2 | |
| Max. Loading Capacity
(LED 4K sending card) |
26 million pixels |
|
| Max. Layers | 32 | |
|
Electrical Specifications |
Power connector |
100–240V~, 50/60Hz, 10A–5A |
| Power consumption |
210 W |
|
| Operating Environment | Temperature | 0°C to 45°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –10°C to +60°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
|
Physical Specifications |
Dimensions | 482.6 mm × 88.1 mm × 455 mm |
| Net weight | 15.6 kg | |
| Gross weight | 18 kg | |
|
Packing Information |
Packing box | 660 mm × 570 mm × 210 mm |
|
Accessories |
1x Power cord
1x RJ45 Ethernet cable 1x Grounding cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Custom Letter |
|
Video Source Features
| Input Connector | Color Depth | Max. Input Resolution | |
| HDMI 2.0 | 8-bit | RGB 4:4:4 | 4096×2160@60Hz
8192×1080@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | 4096×2160@60Hz | ||
| 10-bit | RGB 4:4:4 | 4096×2160@30Hz
4096×1080@60Hz |
|
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×2160@60Hz | ||
| YCbCr 4:2:0 | |||
| 12-bit | RGB 4:4:4 | 4096×2160@30Hz
4096×1080@60Hz |
|
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×2160@60Hz | ||
| YCbCr 4:2:0 | |||
| DP 1.2 | 8-bit | RGB 4:4:4 | 4096×2160@60Hz
8192×1080@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 10-bit | RGB 4:4:4 | 4096×2160@30Hz
4096×1080@60Hz |
|
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×2160@60Hz | ||
| YCbCr 4:2:0 | Not supported | ||
| 12-bit | RGB 4:4:4 | 4096×2160@30Hz
4096×1080@60Hz |
|
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×2160@60Hz | ||
| YCbCr 4:2:0 | Not supported | ||
| HDMI 1.4
DP 1.1 |
8-bit | RGB 4:4:4 | 4096×1080@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 10-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| Input Connector | Color Depth | Max. Input Resolution | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×1080@60Hz | ||
| YCbCr 4:2:0 | Not supported | ||
| 12-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | 4096×1080@60Hz | ||
| YCbCr 4:2:0 | Not supported | ||
| HDMI 1.3 | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 10-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 12-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| SL-DVI | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| DL-DVI | 8-bit | RGB 4:4:4 | 3840×1080@60Hz |
| VGA CVBS | - | RGB 4:4:4 | 1920×1080@60Hz |
| 3G-SDI | l Supports up to 1920×1080@60Hz video inputs.
l Input resolution and bit depth settings are not allowed. l Supports ST-424 (3G) and ST-292 (HD). |
||
| 12G-SDI | l Supports up to 4096×2160@60Hz video inputs.
l Input resolution and bit depth settings are not allowed. l Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD). |
||
