Listen VP1000S Video Processor With SDI

Short Description:

All new LS-VP1000S LED Video Processor , has 8 channels of videoinput, 1 channels of video output,loading capacity for 2.65 million pixels, max. supporting 4 windows display at the same time ;Especially support 2*SDI input to switch; It is suitable for different applications like conference screens and large monitoring screens .

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Feature

1. 2.65 million pixels supported: Max. width can be 3920 pixels, Max. height can be 4048 pixels;
2. Support seamless switching under the condition when opening 1 or 2 windows;
3. Support POP , max. 4 pictures of 田 type and 4 pictures of horizontal type, and display 4 inputs at the same time；
4. Audio and video synchronous : synchronization of audio and video switching；
5. Support software control from computer by RS232;
6. Support USB/SDI extension；
7. Support multi-machines mosaic in horizontal, max. 10 machines ；
8. Support rotation, single picture supports rotation of 90 degrees, 270 degrees, 180 degrees, horizontal mirror image, vertical mirror image, double pictures supporting rotation of 180 degrees, horizontal mirror image, vertical mirror image;
9. Support HDCP1.4 .

Appearance Description

Front side：

1.：LCD

2.：Knob, , press the knob to confirm the input or access, rotate the knob to select / adjust the parameters
3. OK： You can enter the setting menu to set all parameters
4. Return ：Press the key to return to the previous unit
5. TEMPLATE: Template key, load window template
6. LOAD :Load scene function, load pre-saved parameters, supporting max. 10 groups
7. SAVE: Save the scene function, store the currently configured parameters for fast loading, and support max.10 groups .
8. PART/FULL：Switch to display part or full picture
9. SWITCH：Choose windows
10. USB/SDI2：After the USB input is extended, it can be used to switch the video picture played on the USB disk to the previous program; after the SDI input is extended, it can be used to switch the input source to SDI2
11. SIZE POS: Enter the position size adjustment interface to adjust the window position size
12. CROP：Enter the input interception adjustment interface, and you can crop the input source to enlarge the display
13. FREEZE：Freeze so that the output screen stays at the current frame
14. BLACK：Black the display
15. Input area： 1*DVI，2*HDMI，1*VGA， support 2*SDI inputs or 1*USB input extended
16.Update：For firmware/software update
17. ：Power on/off

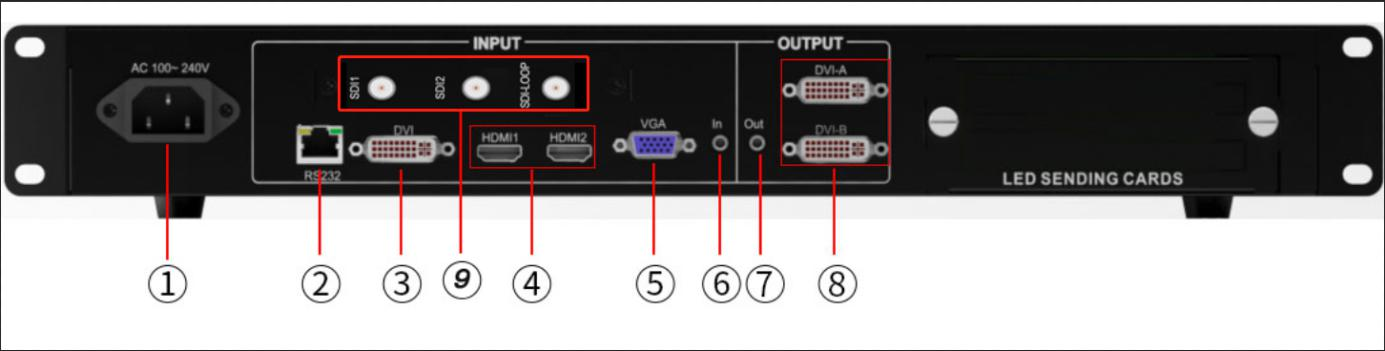

Rear side：

1. Power interface
2. RS232：link to PC or central console
3. Input：1*DVI
4. Input：2*HDMI
5. Input：1*VGA
6. Analog audio input interface（IN）
7. Analog audio output interface（OUT）
8. 1*DVI output：DVI-A and DVI-B for backup
9. 2*SDI input,1*SDI loop out

Specifications

DVI Inputs
Quantity：1
Connector： DVI-I
Signal Standard： DVI1.0，HDMI1.3 downward compatible
Supported resolutions： VESA，PC to 1920x1200
HDMI Inputs
Quantity： 2
Connector： HDMI-A
Signal Standard： HDMI1.3 downward compatible
Supported resolutions： VESA, PC to 1920x1200
VGA Inputs
Inputs： 1
Connector： DB15
Signal standard： R. G. B. Hsync. Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) ，75 ohm black level：300mV Sync-tip：0V
Supported resolution： VESA，PC to 1920x1200
Audio inputs
Quantity： 1
Connector： 3.5mm RCA
Signal standard： Analog audio
Audio outputs
Quantity： 1
Connector： 3.5mm
Signal standard： Analog audio
DVI Outputs
Quantity： 1+1（backup）
Connector： DVI-I
Signal standard： DVI1.0
Supported resolution：
800×600@60Hz
1024×768@60Hz
1280×720@60Hz
1280×1024@60Hz
1440×900@60Hz
1600×1200@60Hz
1680×1050@60Hz
1920×1080@60Hz
1920×1200@60Hz
1024×1920@60Hz
1536×1536@60Hz
2048×640@60Hz
2048×1152@60Hz
2304×1152@60Hz
Customized
Whole machine
N.W：4.2KG
Size（mm）： Case size：（LWH）483x280x60、
Packing size：（LWH）520x353x130
Power supply： 100VAC – 240VAC 50/60Hz
Max power： 18W
Temperature： 0°C～45°C
Storage humidity： 10%～90%
